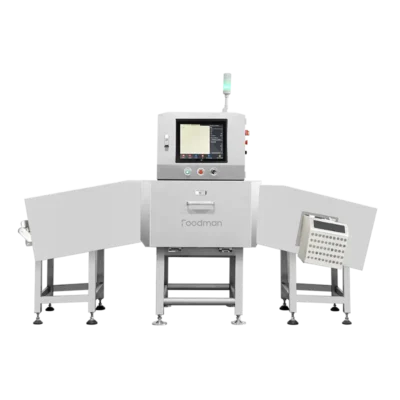

The Foodman Fat Analysis X-Ray Inspection System is designed to accurately measure fat content in various meats, including beef, pork, lamb, and poultry, using progressive X-ray technology. It delivers real-time analysis of meat composition and fat levels without disrupting production, ensuring that each product complies with specified fat content requirements.
Beyond fat analysis, the system also provides integrated weighing functions and detects contaminants such as bone fragments, metal, and glass, offering a comprehensive quality control solution. Its high-speed processing ensures large volumes are inspected quickly and accurately.
Maximize efficiency and profitability with the Inline Fat Analysis X-Ray Inspection System. This solution enables better control over supplier quality, optimizes raw material usage, reduces lean meat loss, and delivers significant cost savings, 100% batch monitoring, and improved product quality.
APPLICATIONS
cuts of meat
steak
pork
patty
TECH SPECS
Model: FXR-FA4017
X-Ray Tube: 350W, 40-100KV(Beryllium)
X-ray Detector: 0.4, 0.8mm TDI Dual Energy
Aperture Size width: 600mm
Aperture Size height: 350mm
Inspection Modes: Simultaneous checking of contaminants, chemical fat values, quality measurement(weight)
Fat Accuracy: <1% fat
Speed:10-60m/min
Max Capacity: Up to Bulk: 30tons/hr, Packages:2400 packages/hr
Operation: 17-inch colored touchscreen, Windows 10
Support Data Interface: Lan port, USB Port, Ethernet
Waterproof Level: IP66
Leakage: <1μSv
Protection Material: Protecting Cabinet
Operating Requirement: Temperature:-10℃～40℃，Humidity:30%～90%
Power Supply: AC220/110V±10% 50Hz/60Hz
Main Structure: SUS304 Stainless Steel
KEY FEATURES
Effortless Integration with a Compact and Versatile Design
The Foodman Fat Analysis X-Ray Inspection System features a space-efficient design that seamlessly fits into existing production lines. Its adjustable belt height and angle provide flexibility for different setups, ensuring easy installation without interrupting production processes.
High-Speed Processing
Capable of handling large volumes with high-speed, accurate detection, increasing throughput without sacrificing precision.
Real-Time Fat Analysis with Batch Control
The dual energy system for fat analysis allows real-time monitoring of supplier quality by tracking fat content. This ensures compliance with specific requirements, enhances raw material management, and reduces rework. As products move along a conveyor belt, fat analysis data is displayed on-screen and can be integrated into factory control systems, facilitating efficient bin sorting and minimizing manual inspections. The x-ray machine for fat analysis can also be equipped with customizable visual reports for production processes.
Versatile Meat Analysis for All Conditions
The Foodman Fat Analysis X-Ray Inspection System is engineered to handle a wide range of meat and poultry products, whether fresh, frozen, chilled, or unwrapped. It provides accurate fat analysis across different meat types, including loose bulk, hot-boned, and frozen or tempered meat blocks. With adjustable models, window sizes, and operation settings, this system adapts to various processing conditions, ensuring reliable results even in challenging temperature environments.
Comprehensive Functionality
In addition to fat analysis, the Foodman Fat Analysis X-Ray Inspection System also offers precise weighing and contaminant detection, ensuring all products meet the highest quality and safety standards.
Dual-Energy X-Ray Technology for Accurate Fat Analysis
The Foodman X-Ray Inspection System employs progressive FDX (Foodman Dual Energy X-Ray) technology to deliver highly accurate fat content measurements. By analyzing the absorption of various X-ray energies, the system precisely determines fat-to-lean ratios, ensuring consistent product quality and meeting fat content standards.
