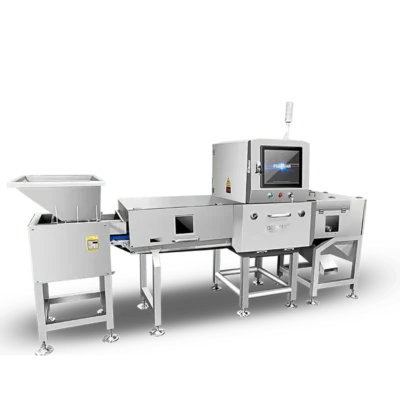

X-Ray Inspection System for Medium Unpackaged Bulk Products
Suitable for loose and unpackaged materials such as nuts, oatmeal, wheat, rice and other grains, candies, capsules, tablets, rubber particles, etc.
The automatic food X-ray machine is progressive technology that utilizes advanced penetration capabilities to accurately detect contaminants in the food industry.
With exceptional precision and stability, this advanced X-ray food inspection machine is vital for improving product quality. It is extensively utilized in industries like agricultural product processing, food production, and pharmaceuticals, providing a reliable solution for detecting foreign contaminants.
This adaptable X-ray inspection system is perfect for examining loose and unpackaged products such as nuts, coffee, oatmeal, flour, wheat, rice, candy, capsules, tablets, granules, and rubber pellets, ensuring the safety and integrity of the food supply chain and automatic rejection of the following foreign objects—metals, glass, Ceramic, stone, hard plastic, rubbers.
APPLICATIONS
loose nuts
loose rice
loose coffee beans
loose cereal
TECH SPECS
Model: FXR-S4017
X-Ray Tube: 40-120KV
Aperture Size:
Width: 400mm
Height: 170mm
Working Speed: 10-100m/min
Sensitivity(mm):
Stainless Steel Ball: Ф0.3
Stainless Steel Wire: Ф0.2*2
Ceramic: Ф1.0
Glass: Ф1.0
Operation: 17-inch colored touch screen, Windows System
Support data interface: LAN Port, USB Port
Power Supply: AC220V±10% 50Hz(60Hz), 1.5KVA Max
Rejector: 32-lane air blast, single/double/four-lane flipper
Waterproof Level: IP66 for tunnel, IP54 for rest part
Operating Requirement: Temperature：-10℃～40℃，Humidity：30%～90%
Main Structure: SUS304 Stainless Steel
KEY FEATURES
Enhanced Detection Sensitivity
Accurately identifies contaminants like metal, glass, bone, stone, plastic, and rubber in unpackaged bulk products such as grains, coffee, nuts, and powders.
Low Loss Rate
Our system ensures minimal material loss, offering a low loss rate due to the comprehensive coverage provided by the X-ray inspection system’s full-frame design.
Multiple Rejection System is Available
We also provide multiple rejection system for electronic components, giving you the option to select either a 32-lane air blast/64-lane air blast or a single, double, or four-lane flipper device.
Advanced Image Processing
Utilizes FIAP (Foodman Intelligent Algorithm Platform) with AI-driven algorithms for real-time detection, ensuring precise identification of small and low-density contaminants.
Innovative Design
Our innovative design separates the light source from the equipment, enabling the use of robust air conditioning and independent air supply systems in challenging environments.
Wide Range of Voltage Control
As a leading manufacturer of X-ray inspection machines, we offer a wide range of voltage control options at no extra cost, featuring a high utilization rate of standard voltage in the industry.
What Makes FOODMAN X-RAY INSPECTION SYSTEM DIFFERENT?
AI Based Technology
