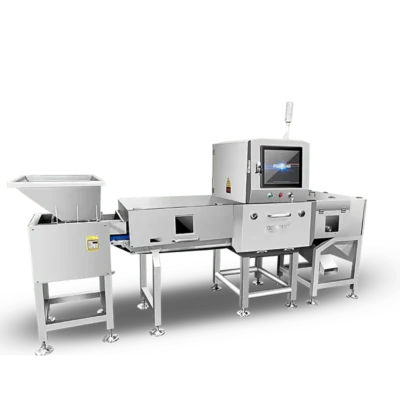

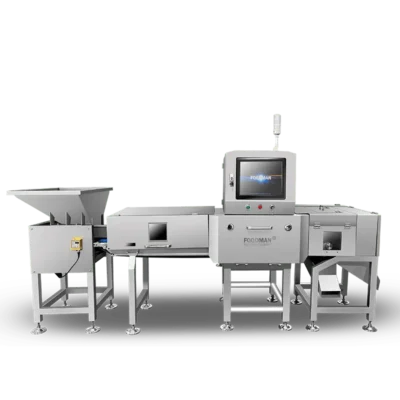

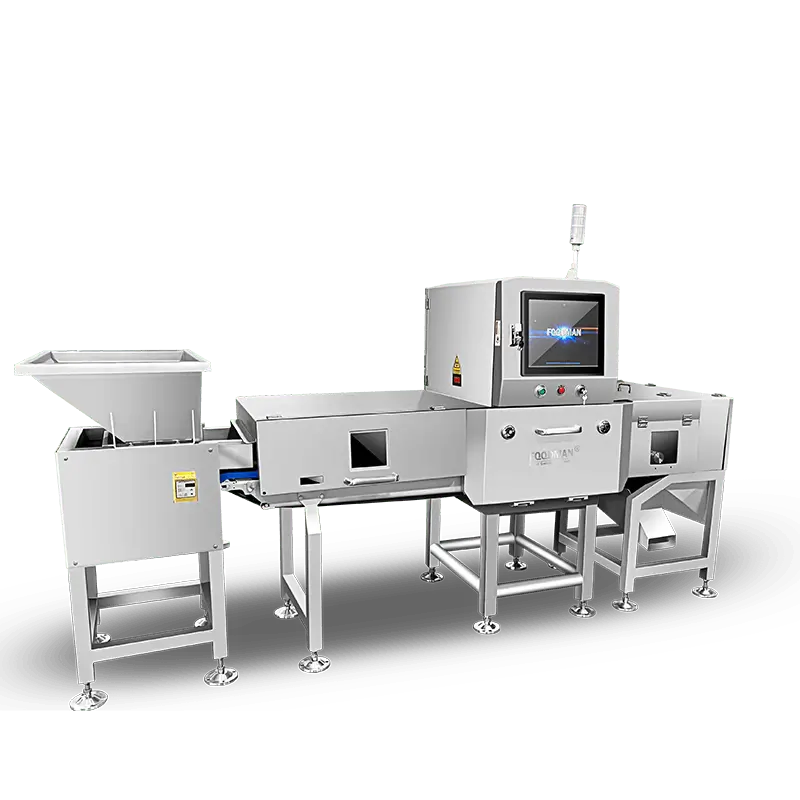

X-Ray Inspection System for Large Unpackaged Bulk Products
Ideal for handling loose and unpackaged materials, including nuts, oatmeal, wheat, rice, various grains, candies, capsules, tablets, and rubber particles, among others.
The automatic food X-ray machine represents progressive technology that employs advanced penetration capabilities to accurately identify contaminants such as bones, plastics, glass, ceramics, stones, and hard metals within the food industry.
With outstanding precision and stability, this sophisticated X-ray food inspection system plays a crucial role in enhancing product quality. It is widely used in sectors such as agricultural product processing, food production, and pharmaceuticals, offering a dependable solution for detecting foreign contaminants.
This versatile X-ray inspection system is ideal for analyzing loose and unpackaged products like nuts, coffee, oatmeal, flour, wheat, rice, candy, capsules, tablets, granules, and rubber pellets, thereby ensuring the safety and integrity of the food supply chain.
APPLICATIONS
loose nuts
loose coffee beans
loose rice
loose cereal
TECH SPECS
Model: FXR-S6035
X-Ray Tube: 40-120KV
Aperture Size:
Width: 600mm
Height: 350mm
Working Speed: 10-100m/min
Sensitivity(mm):
Stainless Steel Ball: Ф0.3
Stainless Steel Wire: Ф0.2*2
Ceramic: Ф1.0
Glass: Ф1.0
Operation: 17-inch colored touch screen, Windows System
Support data interface: LAN Port, USB Port
Power Supply: AC220V±10% 50Hz(60Hz), 1.5KVA Max
Rejector: 32-lane air blast, single/double/four-lane flipper
Waterproof Level: IP66 for tunnel, IP54 for rest part
Operating Requirement: Temperature：-10℃～40℃，Humidity：30%～90%
Main Structure: SUS304 Stainless Steel
KEY FEATURES
Specialized Detection
The Foodman X-ray food inspection system is specifically engineered for the detection of loose and unpackaged products, providing precise and dependable results.
Minimized Material Loss
Our system ensures minimal material loss, featuring a full-frame design that delivers comprehensive coverage and a low loss rate during inspections.
Available Rejection System
We offer a rejection system for electronic components, allowing you to choose between a 32-lane air blast or a single, double, or four-lane flipper device for effective removal of contaminants.
High Efficiency
With an operational speed ranging from 10 to 100 m/min, our X-ray inspection system guarantees exceptional efficiency.
Innovative Design for Optimal Performance
Our unique design separates the light source from the equipment, facilitating the use of robust air conditioning and independent air supply systems even in demanding environments.
Versatile Voltage Control
As a leading manufacturer of X-ray inspection machines, we provide a variety of voltage control options at no additional cost, boasting a high utilization rate of standard voltage in the industry.
What Makes FOODMAN X-RAY INSPECTION SYSTEM DIFFERENT?
Commitment to Safety
